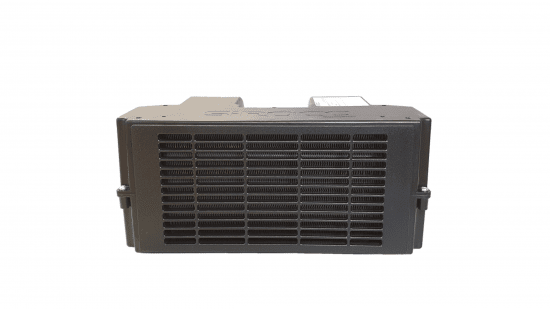

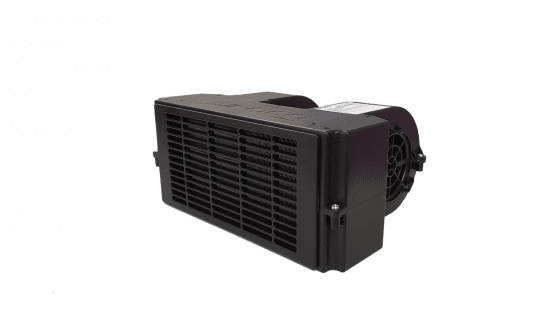

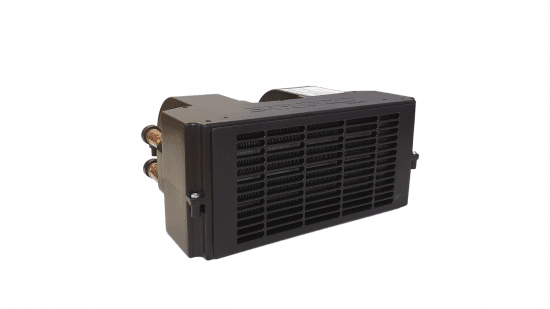

TENERE II C - 12V Water heat exchanger with fan

Product information:

 Voltage: 12V

Nominal air flow: 250 m3/h

This heat exchanger has a 2-speed fan

Heating capacity, Ethylene glycol: 3.14 kW

Inlet & outlet for ethylene glycol: ø16 mm

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88

For fan speed control optional 3 position rotary switch FR057 is required.

Water heat exchanger with the fan is suitable for all the following liquid heaters:

• AUTOTERM Flow 5 D / B
• AUTOTERM Flow 14D

Manufacturer: SIROCO

It is a heat exchanger that works as a radiator with an active fan that distributes hot air around the room it has been installed.  As this water heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to circulate air in the room. As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.
