Product information:
Voltage: 12V
Nominal air flow: 236 m3/h
This heat exchanger has a 2-speed fan
Heating capacity, Ethylene glycol: 3.05 kW
Equipped with 2 adjustable air diffusers with 3 closable flaps
Inlet & outlet for ethylene glycol: ø16 mm
Maximum allowable inner temperature °C: 100
Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88
Power supply connector not included.
For fan speed control optional 3 position rotary switch FR057 is required.
Water heat exchanger with the fan is suitable for all the following liquid heaters:
Manufacturer: SIROCO

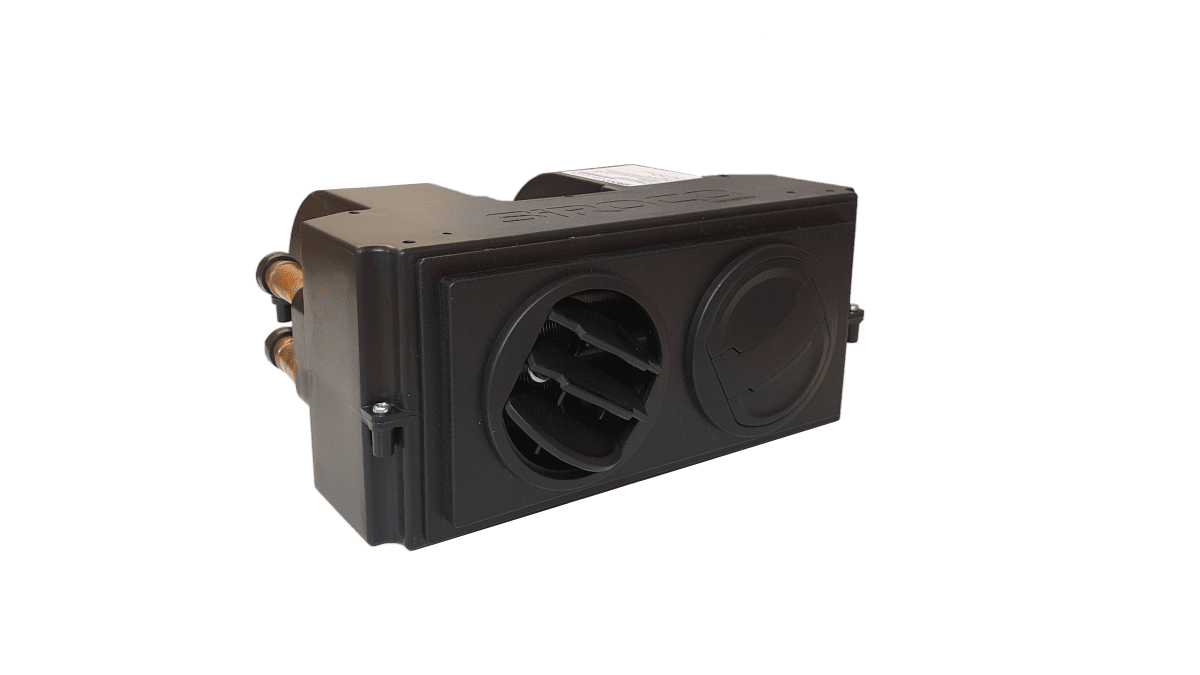

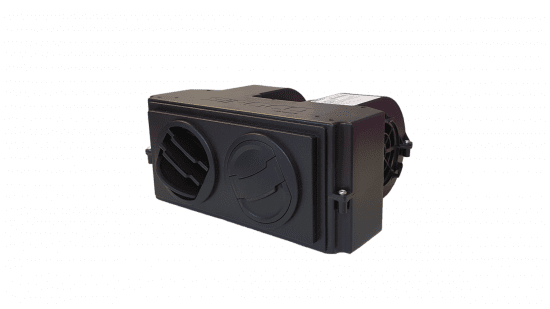

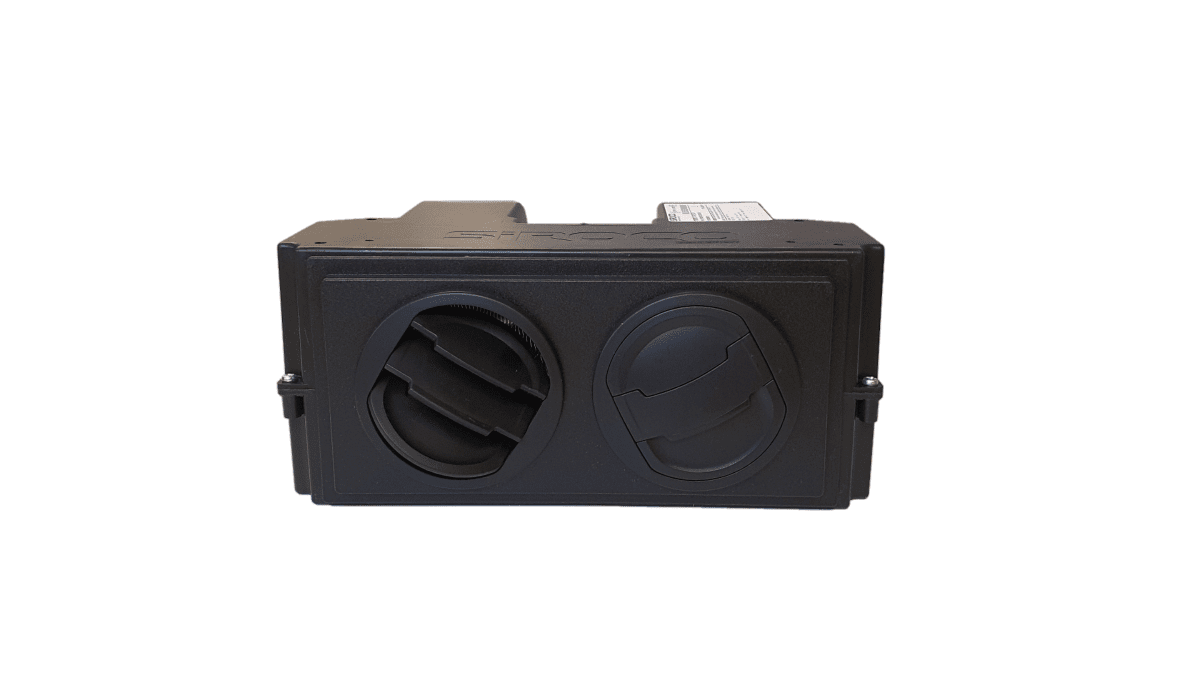

It is a heat exchanger that works as a radiator with an active fan that distributes hot air around the room it has been installed. As this water heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to circulate air in the room. As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.
